What is lapped Joint flanges?
Lapped joint Flanges slips straight over the pipe, and it is applied with the stub end fittings, and it is also complementary to revolve around the stub end. These types of flanges are needed in piping components where each side of the flanges is connected with a stub end and a loose backing flange. The exterior diameter of the outside stub’s end is joined by the movable backing flanges, which are butt-welded to the pipe. Here, The backing flange can be turned, which is dominatingly useful when it is mandatory for the lapped joint flanges during creation.

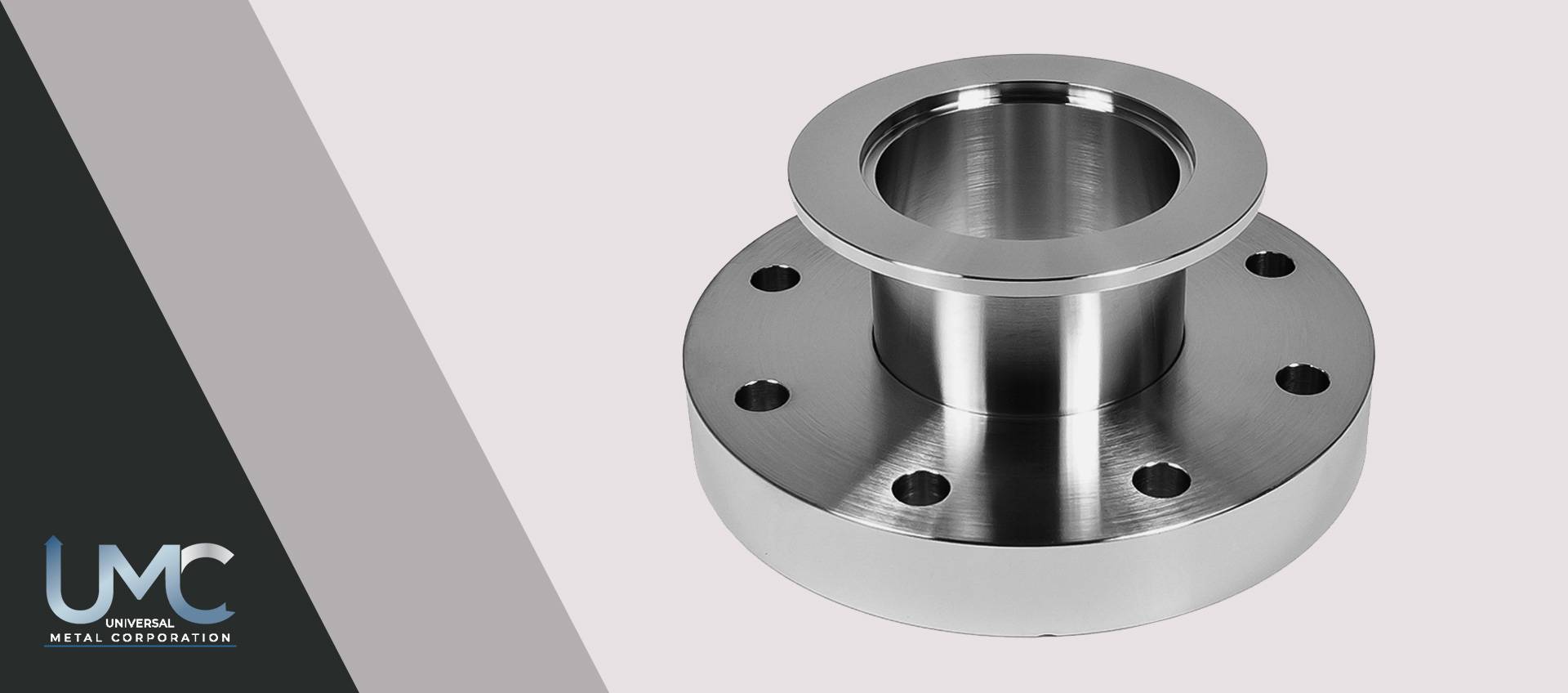

What are Monel lapped joint flanges?
Like Monel 400 and K500, Monel lapped joint flanges are made from a nickel-copper alloy and exhibit excessive strength, toughness, and excellent corrosion resistance over a extensive temperature range. An outstanding characteristic of Monel lapped joint flanges is that they offer exceptional resistance to hydrofluoric acid, a specifically tough acid to deal with, in all concentrations as much as the boiling point. Monel lapped joint flanges are perhaps the most resistant of all commonly used speciality alloys for hydrofluoric acid applications.
Properties of Monel Lapped Joint Flanges:
- Best resistance to hydrofluoric acid
- Best resistance to seawater for marine applications
- High strength metal with good hardness at elevated temperatures
What is the advantage of lapped joint flanges?
Benefits of Lapped joint flanges: Lapped Joint Flanges have the opportunity to turn around the line. It works with the lining up of contrasting flange bolt holes. The absence of touch with the fluid inside the pipe prompts the more prominent toughness of these ribs. Simple to get ready, Can be framed between unique metals, like aluminium and copper. Obliges various thicknesses (more slender piece should be welded on top)
Usage: Monel lapped joint flanges are frequently found in marine and chemical processing.
Specification of Monel Lapped Joint Flanges
- Specifications : ASTM B564/ ASME SB564
- Size : 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
- Dimensions : ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS SP44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
- Pressure Rating : Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
- Connect Type/ Flange Face Type : Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Equivalent Grades of Monel Lapped Joint Flanges
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Monel 400 | 2.4360 | N04400 |
| Monel K500 | 2.4375 | N05500 |
Contact us to get a quick quote for your requirement.
